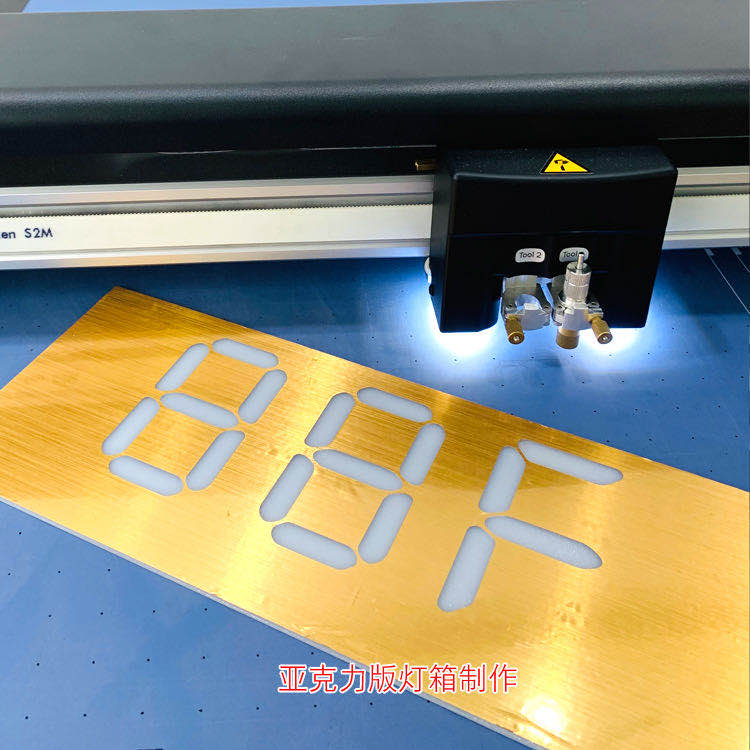

产品型号：VULCAN高速智能平板切割机Valken Flatbed Cutting Plotter
产品简介：VULCAN高速智能平板切割机，采用伺服驱动器，伺服电机控制，速度非常快，精度高，声音小，机器标配有真空吸风泵，另配有消音器工具，让您可以享受安静的工作环境。
FC-500VC平板切割机，******切割范围：500*700mmFC-800VC平板切割机，******切割范围：：800*1080mm
FC型号有由 Flatbed cutter平板切割机，英文单词的缩写，500为机器宽度为500mm，VC是Vacuum气泵，真空吸附缩写。

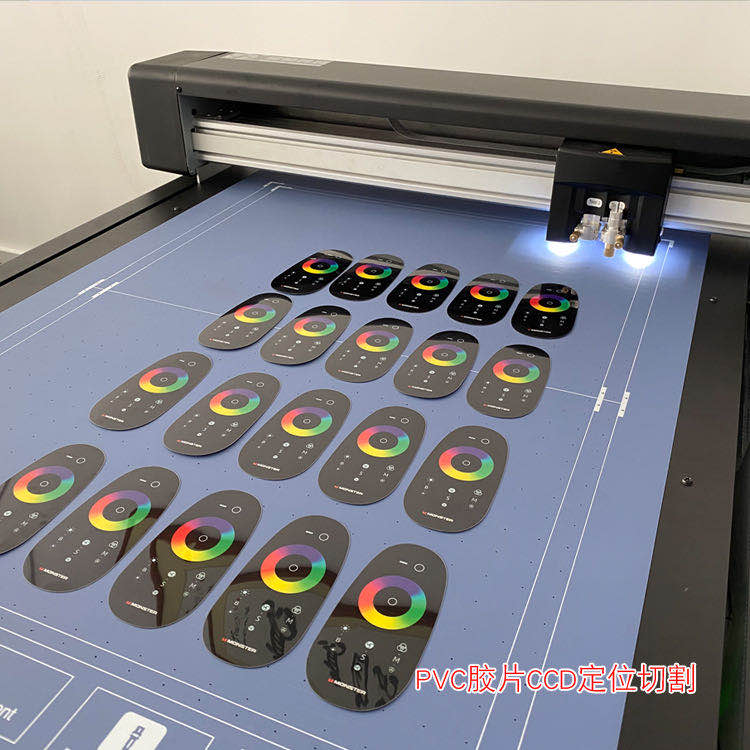

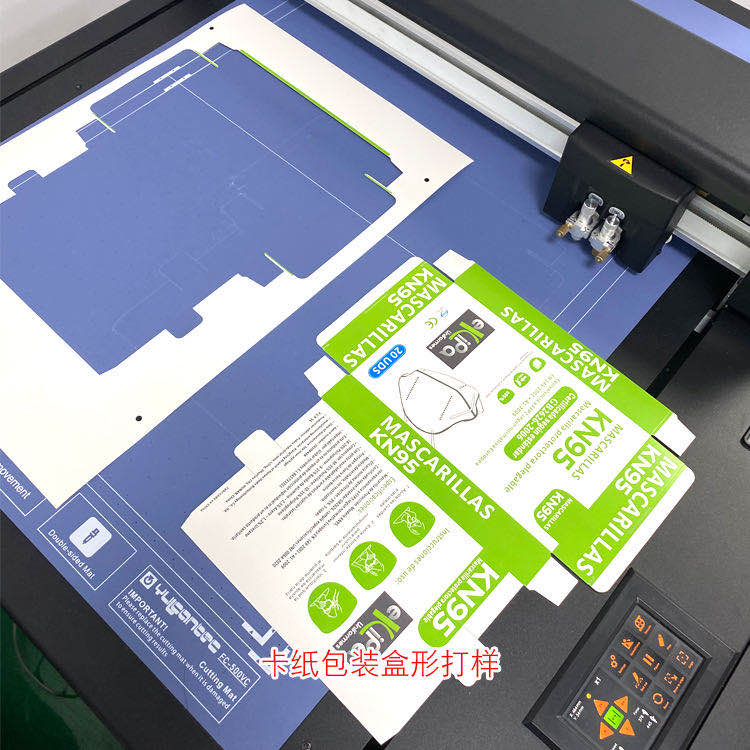

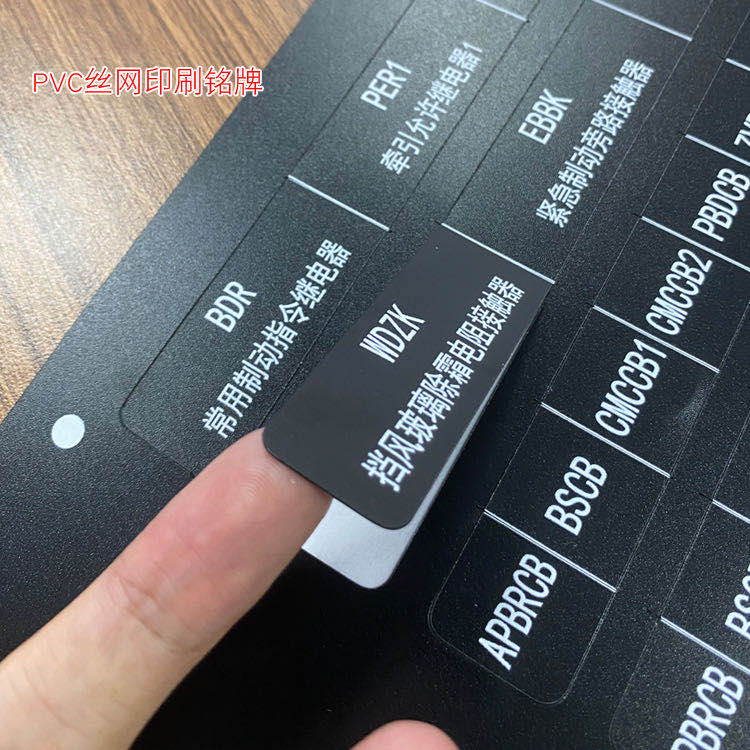

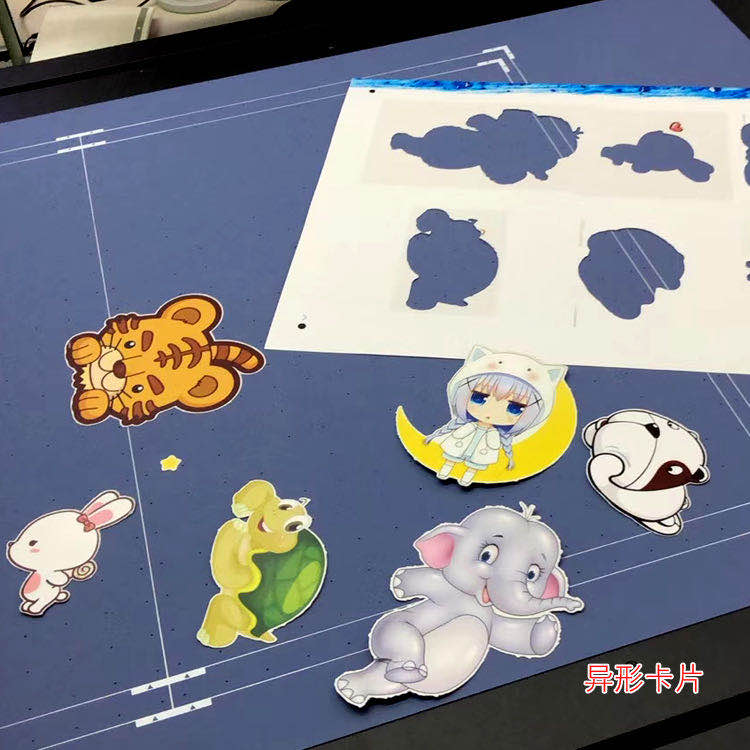

FC-500VC平板切割机，******切割范围为500*700mm，标配有2个工具头，1个为切割刀头、1个为压痕工具头、也可以安装绘图笔，标配有CC摄像头定位系统，可以通过打印或印刷的定位点进行定位，通过原始图稿文件，实现任意形状不干胶、卡纸类等1mm以下非金属材料进行切割，可将盒形文件进行的压痕与切割工作，无需制作刀模，节省了制作刀模的时间和成本，是个性化，小批量产品的打样切割好帮手。
产品配有专用的输出软件，可以安装在CorelDRAW或Aobe Illustrator成为一个插件模式工具，无需文件导入导出，直接通过软件输出，该软件还支持苹果MAC系统，软件Orcode二维码识别系统，可生成二维码格式文件，可以自动识别印刷带有该二维码的文件，进行自动调取该刀模文件进行切割，无需查找文件，实现智能工作模式。
该机采用伺服驱动器，伺服电机控制，速度非常快，精度高，声音小，机器标配有真空吸风泵，另配有消音器工具，让您可以享受安静的工作环境。
The Vulcan FC-500VC flatbed cutting plotter is ideal for light to medium production and design samples.
Ideally suited for packaging boxes, tags, cards and labels.
Camera system, User friendly touch screen, Advanced contour cutting, Network interface, U-Disk function and QRcode system, make the FC-500VC special.
Perforation cut, Die cut, Kiss cut and Creasing, make your ideas come true.
Specification
Item | FC-500VC |
Configuration | Digital servo system, Flatbed |
Media hold-down method | Vacuum suction |
Maximum cutting speed | 700 mm/s (10 to 700 mm/s ) |
Cutting pressure | Tool1: Max.5.88N(600 gf) Tool 2: Max. 5.88 N (600 gf) |
Effective cutting area | 495x685mm |
Mountable media (Y-axis direction) | 640mm |
Minimum character size | 5 mm square |
Mechanical resolution | 0.005 mm (5µm) |
Programmable resolution | HP-GL: 0.025 mm |
Repeatability | 0.1mm |
Standard interfaces | USB2.0 (Full Speed) / U-Disk / Ethernet |
Memory | 32MB |
Command sets | HP-GL |
Number of tools | 2 tools |
Tool types | Cutter blade / Pen / Creasing/Etching tool |
Operating screen | 4.3-inch touch LCD |
Power supply | 100 to 240 V AC, 50/60 Hz (Auto switching) |
Power consumption | Max. 150VA (machine), Max.550W (vacuum pump) |
Operating environment | Temperature: 10 to 35 degrees C (35 to 95 degrees F) |
Humidity | 35 to 75% RH (non-condensing) |
External dimensions | 981(Y)x977(X)x1047(H)mm |
Packaging dimensions | 110X110X58CM (machine) / 44X39X48CM (vacuum pump) |
G.W. / N.W. | 90kg / 62kg (machine), 25/23kg (vaccum pump) |
Compatible OS | Windows and Mac |
包装盒

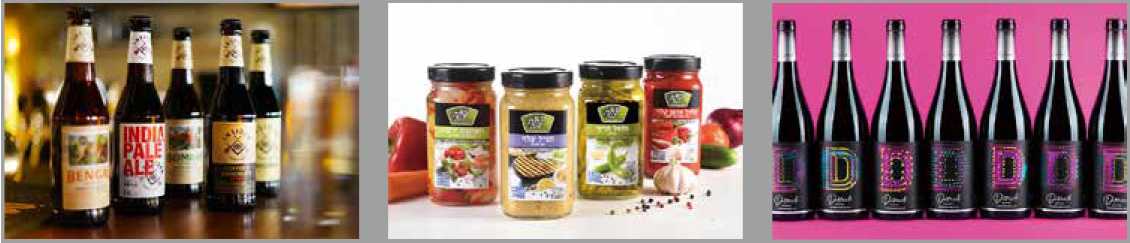

标签

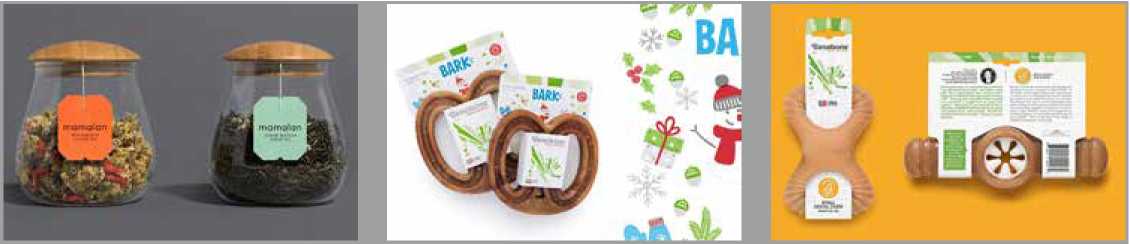

吊牌、卡片
